The installed GoodWe battery price varies with battery quantity, inverter or ESA equipment, phase type, backup design, switchboard work, cabling, access, and available incentives. A site-specific quote is more meaningful than a hardware only price.

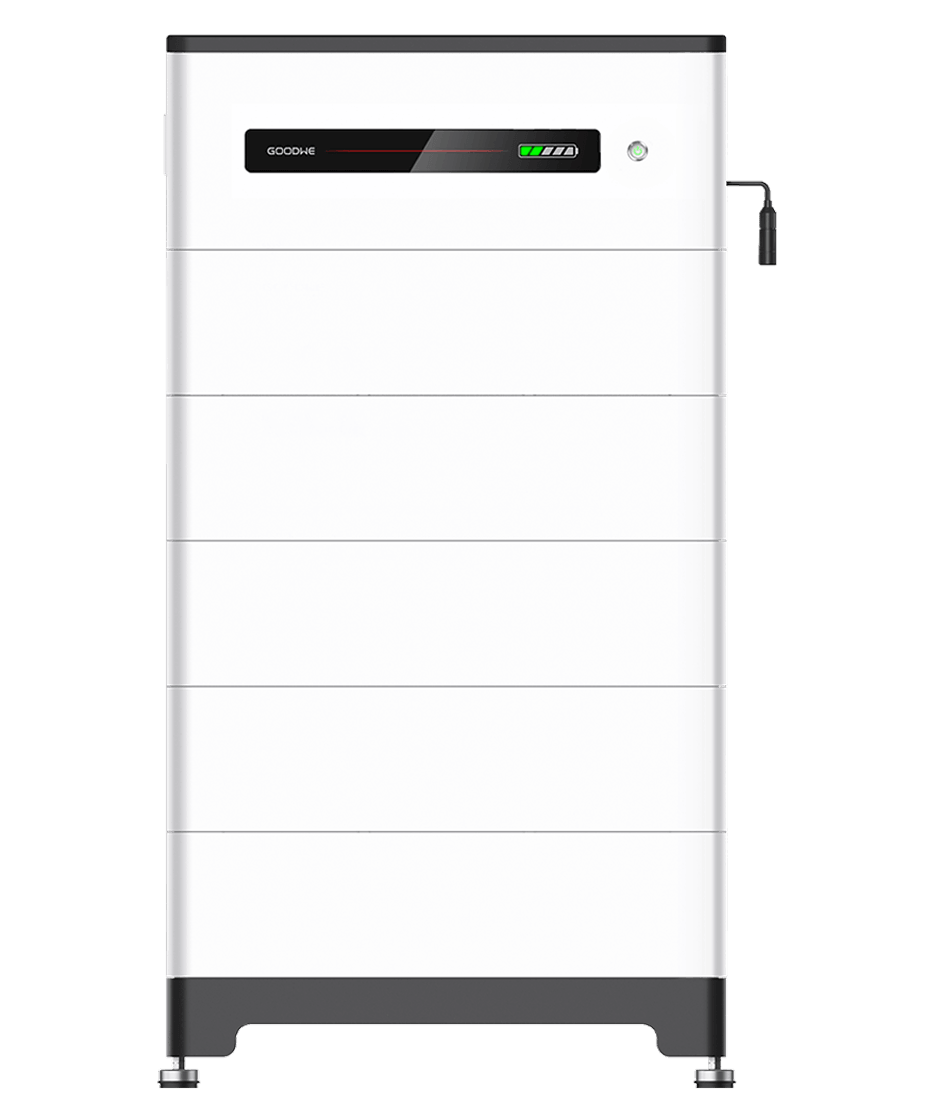

Store more of the solar energy your home produces and use it when you need it. AAA Energy supplies and installs GoodWe battery systems for Australian households, with recommendations based on your electricity use, existing solar equipment, property and backup priorities. The GoodWe GW8.3-BAT-D-G20 is a high-voltage residential battery from the Lynx D G2 Series. It provides 8.32 kWh of rated energy and 8.0 kWh of usable energy under GoodWe’s stated beginning-of-life test conditions. Its lithium iron phosphate (LFP) chemistry, IP66 enclosure and integrated protection features make it a practical option for suitable home energy storage systems. A battery is only one part of a complete solution. Inverter compatibility, usable solar surplus, phase configuration, switchboard condition, backup design and installation location all influence performance and price. AAA Energy can assess these factors before recommending a system.
Designed for residential solar energy storage, the GW8.3-BAT-D-G20 can capture available daytime solar generation for use later, such as during the evening, overnight or in selected higher-tariff periods. This can increase solar self-consumption and reduce the amount of electricity purchased from the grid, although actual results vary between homes.
The battery is compatible with GoodWe ESA Series for all-in-one systems and a range of GoodWe energy-storage inverters, including selected ET G2 and ET30 Series products, subject to the current compatibility of documentation and system design. Do not assume that every GoodWe or third-party inverter can connect directly.
| Usable energy* | maximum input/output power * | peak output for 10 seconds* | Enclosure Rating | product and performance warranty |
|---|---|---|---|---|
| 8.0 kWh | 8 kW | 12 kW | IP66 | 10 years |
Instead of exporting all unused daytime generation, a correctly sized GoodWe solar battery can store available surplus energy for later household use. This may help reduce evening grid imports and improve the value you receive from your rooftop solar system.
With 8.0 kWh of usable energy under the manufacturer’s test conditions, one GW8.3-BAT-D-G20 may suit homes with meaningful evening or overnight consumption and enough surplus solar to recharge it regularly. AAA Energy can compare your interval data or bills with the battery usable capacity before recommending a design.
Battery backup is possible only when the GoodWe battery is installed with compatible power-conversion equipment and a correctly designed backup arrangement. The circuits supported, maximum load, transfer behaviour and expected runtime must be confirmed before installation. A battery alone does not automatically provide whole-home blackout protection.
The GW8.3-BAT-D-G20 uses lithium iron phosphate chemistry and includes a dedicated battery management unit. GoodWe lists thermal-electric separation, integrated heating and an integrated aerosol fire-extinguishing function for this model. Safe operation still depends on compliant installation, correct placement, and use in accordance with the manufacturer’s instructions.
The IP66-rated enclosure is designed to protect against dust and powerful water jets under the relevant test standard. GoodWe supports floor-stacked or wall-mounted installation for this model. Final placement must satisfy the installation manual, required clearances, environmental limits and Australian battery-installation rules; an IP rating does not make every outdoor location suitable.
Lynx D G2 battery packs have an independent battery management unit and can be configured in parallel. GoodWe states scalability of up to 12 units, with a maximum of six units for a single-column stacked installation. Expansion may also allow compatible capacities or batteries of different ages to be combined within the series. Every initial or later addition must be checked against inverter capacity, voltage, firmware, physical space, electrical design, approval and warranty requirements.
When paired with suitable GoodWe equipment, the broader system can provide energy monitoring and support remote diagnostics or updates through the inverter ecosystem. Available data, operating modes, and communications depend on the selected inverter, meter, internet connection and commissioning settings.
The right home battery storage capacity is not determined by roof size alone. A useful starting point is to compare your typical evening and overnight grid consumption with the battery’s 8.0 kWh usable energy, then check whether your solar system regularly exports enough surplus electricity to recharge it.
The GW8.3-BAT-D-G20 may be worth considering if you:
A larger battery is not automatically better. Oversizing can leave capacity unused, while undersizing may fail to capture useful solar surplus. AAA Energy can review your bills or interval data, solar production, peak loads, inverter, phase supply, switchboard, available space and future plans.
There is no single reliable, advertised price for a complete GoodWe battery installation. Installed cost depends on the number of battery units, compatible inverter or ESA equipment, single- or three-phase design, switchboard work, backup circuits, cable routes, mounting, access, metering, commissioning and any eligible incentives. A useful quote should clearly identify the battery model and quantity, usable capacity, inverter or power-conversion equipment, backup scope, installation work, exclusions, monitoring setup, warranties, and incentive assumptions. AAA Energy can prepare a site-specific proposal, so you can compare complete systems not battery hardware prices in isolation.
Eligible battery systems may receive support through the Australian Government’s Cheaper Home Batteries Program under the Small-scale Renewable Energy Scheme, and some customers may also have access to state, territory, retailer or virtual power plant offers. Eligibility is not automatic. It depends on the current program rules, approved product and inverter listings, battery capacity, installation date, existing equipment, premises, installer accreditation, and other technical requirements. Discount values also change with certificate settings and market conditions. AAA Energy can assess the proposed configuration against the rules current at the time of quotation; final eligibility remains subject to the applicable program and approval process.
GoodWe’s Australia and New Zealand limited warranty for the BAT Series lists a 10 year product warranty and a 10 year performance warranty for the GW8.3-BAT-D-G20, subject to the warranty’s preconditions, exclusions, operating requirements and throughput limits. The performance warranty refers to retention of 70% of usable energy or achievement of the stated minimum throughput whichever comes first. GoodWe states minimum throughput DC energy of 3 MWh per kWh of usable battery capacity under the warranty conditions. Australian Consumer Law rights also apply and are not excluded by the manufacturer’s limited warranty. Customers should retain their invoice, serial numbers, compliance documentation, manuals and monitoring records, and review the warranty applicable at the time of purchase. Faults should be reported promptly through the installer or GoodWe’s nominated service process.
AAA Energy provides solar and battery solutions for Australian homes. Our goal is to help you choose a properly designed system that suits your property and energy needs without relying on one size fits all capacity or savings claims.
A well designed solar battery system starts with your household, not a generic capacity recommendation. AAA Energy can assess your solar production, electricity use, existing equipment, installation location and backup goals, then explain the GoodWe options that suit your property.
